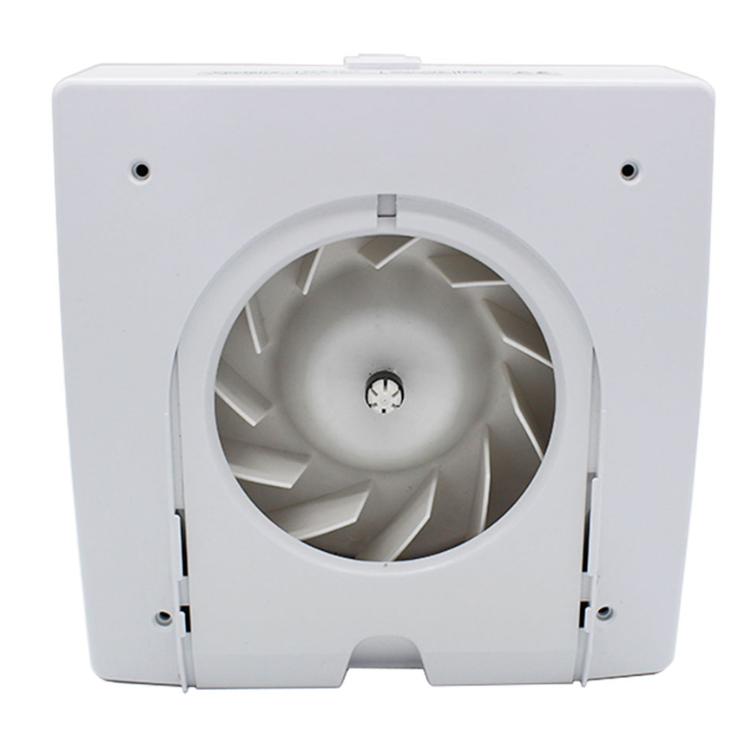

Vectaire ELX 1003 HDT Fan
- Energy efficient EC motor
- Provides low level continuous ventilation to control condensation
- 3 speed centrifugal fan
- Choice of 2 low speeds at installation
- For wall or ceiling
- For any domestic wet room
- Low noise levels and running costs
- Compliant with Building Regulations Parts L1 2010 and F 2010
- SAP PCDB Listed
General
- exhausts directly to the outside or through long lengths of ducting (up to 15m)
- runs continuously at pre-selected choice of two speeds (fixed at installation)
- Speed 1 operates at 8 l/s (factory set)
- Speed 2 operates at 14 l/s
- anti-vibration gasket
- easily removal, washable polypropylene filter
- speed boosted to maximum (28 l/s) using integral pull cord or by:
- remote switch/light switch
- PIR sensor
- DRH240 (dynamic remote humidistat)
- energy saving ventilation
- extremely low running costs
- low carbon footprint
- 5 years manufacturers warranty, 1 year parts and labour the remaining 4 years parts only
- ELX1003HDT – with comfort timer, humidistat and pull-cord
Specification
- shockproof, high quality technopolymer casing
- designed using latest wind tunnel technology and CFD simulations
- profile increases the fluid dynamics
- EC induction motor with thermal protection
- 30,000 hour life motors with maintenance free and long life ball bearings
- operates in ambient temperatures up to 40ºC
- double insulated – no earth required
- IPX4 – Splashproof rated – can safely be installed in Zones I and II
Compliance
- Part L1 2010 of Building Regulations for enhanced energy saving capability
- Part F 2010 of Building Regulations for reliable, efficient ventilation
- IEC 60335-2-80, BT 2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
- CE marked
- SAP Q eligible
- Energy Saving Trust Best Practice Compliant
Dimenensions
- Core tube vent = 99mm
- Face Housing = 180 x 180
