Shop specialist damp proof membranes, mesh-faced wall membranes and studded cavity drain membranes for suitable damp proofing and basement waterproofing installations.
Choose P2 mesh membrane for compatible internal wall finishing systems, P8 cavity drain membrane for basement tanking applications or P20 membrane for specified basement flooring projects.
Available in practical roll sizes from 5m² to 40m², with larger P20 multi-roll options for commercial and contractor projects.
Damp Proof Mesh Membrane – 1m x 20m
£130.00
20m² nominal roll area.
Mesh facing for compatible
plaster or dry-lining finishes.
BUY MESH MEMBRANE →
Eight membrane products organised by application, making it easier to select a wall membrane, basement cavity drain membrane or flooring system.
Compact mesh membrane rolls for suitable above-ground damp proofing and internal wall finishing.
Small-format damp proof mesh membrane for suitable wall damp proofing and renovation applications.
Ten-metre P2 damp proof membrane roll for compatible internal wall repairs and damp proofing projects.
PAM Mesh 3 membrane featuring a studded HDPE backing and polypropylene mesh face designed to receive compatible plaster or dry-lining finishes.
Studded cavity drain membranes for suitably designed below-ground waterproofing systems.
Flexible studded membrane for specified basement and cellar waterproofing applications, including Type C cavity drain systems.
Mesh-faced studded membrane listed for basement wall applications where a compatible plaster or lining system is specified.
High-profile cavity drain membrane options for suitable basement flooring and water-management systems. Choose 20m², 40m² or a ten-roll pack.

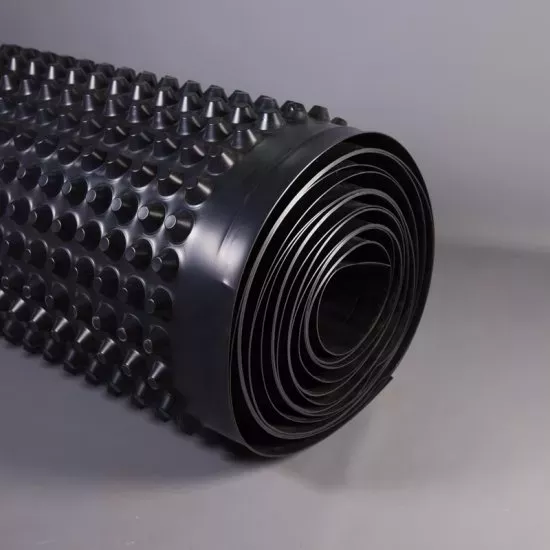

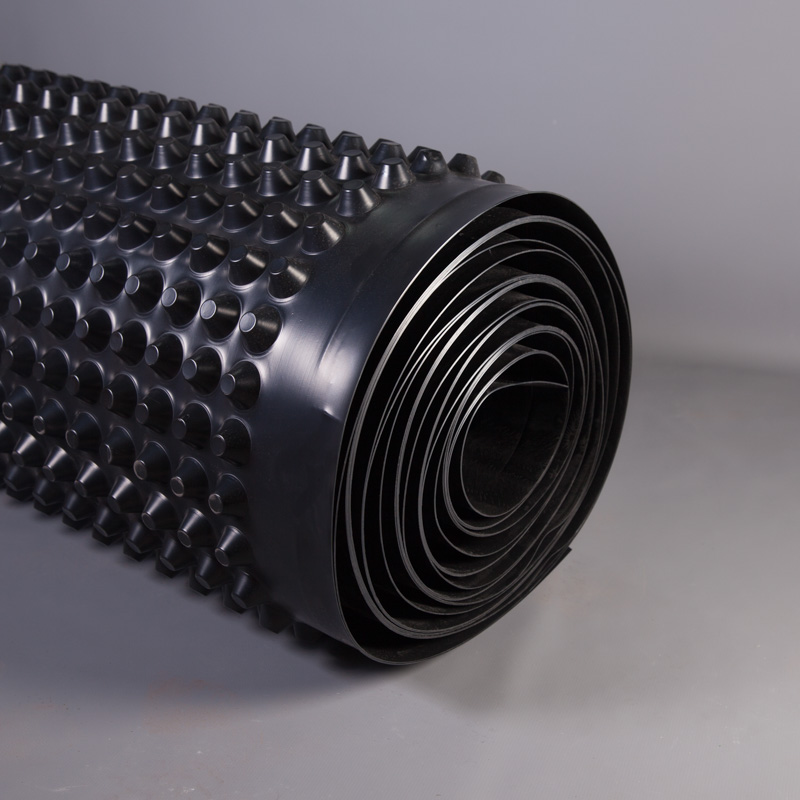

Studded cavity drain membrane supplied in a 2m x 10m roll, suitable for appropriately designed basement flooring and drainage applications.
Larger P20 membrane package covering a nominal 40 square metres before cutting, overlaps and installation waste.
Ten-roll P20 membrane package for larger specified basement drainage installations and contractor projects.
Nominal areas are calculated from stated dimensions before overlaps, edge details and cutting waste. Prices follow the supplied PAM Ties product list.
Different membrane types are designed for different building situations, so choosing the correct membrane is essential.
P2 mesh membranes are designed for suitable internal wall damp proofing where a compatible plaster or dry-lining finish is required.
Mesh-faced membranes provide a surface that can act as a mechanical key for approved plaster and lining systems.
P8 tanking membrane is a studded cavity drain membrane that may form part of a properly designed basement waterproofing system.
P20 membrane is listed for suitable basement flooring applications where cavity drainage, water management and the final floor construction have been considered.
The correct product depends on the moisture source, expected water exposure, structure, required finish and waterproofing design.
Studded cavity drain membranes form part of a Type C drained protection system when used in a suitably designed below-ground waterproofing installation.
The studded profile creates a controlled space between the building substrate and the internal membrane surface.
Where water is expected, the system must include appropriately designed drainage arrangements to collect and remove that water.
Those arrangements may include perimeter channels and a sump pump where gravity drainage is unavailable.
Waterproofing performance depends on the complete system, including correct junctions, sealed fixings, drainage and maintenance.
Wall membranes and floor membranes are not automatically interchangeable.
Wall membranes may be selected for their fixing system, drainage profile and compatibility with internal wall finishes.
Mesh-faced wall products provide a key for approved plaster or render systems.
Floor membranes require consideration of expected loading, floor construction, drainage, compressive performance and the specified finish.
Our P20 product range is marketed for suitable basement flooring projects, but the final floor design must be checked before installation.
Always use the membrane approved for your intended application and complete waterproofing system.
The exact installation procedure depends on the membrane type and waterproofing system specification.
Identify the cause of dampness or water ingress before choosing a membrane. Address underlying defects where necessary.
Select the membrane specified for the wall or floor, expected water exposure and intended finishing system.
Remove loose material, unsuitable organic finishes and sharp projections as required. Repair deteriorated surfaces before fitting.
Use system-approved fixing methods and correct membrane orientation. Floor membranes must follow the specified support and loading requirements.
Complete overlaps, corners, penetrations and wall-to-floor junctions using compatible tapes, seals and detailing.
Apply the approved plaster, lining or floor construction. Where drainage systems are fitted, provide access for inspection and maintenance.
Basement waterproofing should be designed for site-specific groundwater conditions, structural movement, drainage arrangements and intended use.
Refer to the applicable edition of BS 8102 and seek competent specialist advice where required.
A membrane alone does not guarantee protection from flooding or resolve active underlying structural defects.
Compare nominal roll area, product type and listed prices before selecting your membrane.
| Membrane | Size / Area | Price | Approx. £/m² | Shop |
|---|---|---|---|---|
| P2 Damp Proof Membrane | 1m x 5m / 5m² | £36.00 | £7.20 | BUY → |
| P2 Damp Proof Membrane | 1m x 10m / 10m² | £72.00 | £7.20 | BUY → |
| Damp Proof Mesh Membrane | 1m x 20m / 20m² | £130.00 | £6.50 | BUY → |
| Mesh Membrane 8mm | Confirm roll size | £248.40 | — | BUY → |
| P8 Tanking Membrane | 2m x 20m / 40m² | £153.60 | £3.84 | BUY → |
| P20 Basement Flooring | 20m² | £142.00 | £7.10 | BUY → |
| P20 Basement Flooring | 40m² | £267.00 | £6.68 | BUY → |
| P20 Basement Flooring – 10 Rolls | 200m² nominal | £1,819.98 | £9.10 | BUY → |
Price per square metre uses listed nominal roll dimensions and does not include accessories, labour, overlaps or wastage. Products have different functions and specifications, so unit price alone should not determine selection.
Common questions about P2, P8 and P20 membranes, mesh-faced membranes and basement waterproofing.
A damp proof membrane is a barrier or waterproofing component used to manage moisture in suitable building assemblies. Different membranes have different intended applications.
A mesh-faced membrane has a reinforcing mesh on one face that provides a mechanical key for compatible plaster, render or lining systems.
The P2 range is marketed for suitable above-ground wall damp proofing and internal renovation applications requiring a compatible finishing system.
The supplied P2 products include 1m x 5m and 1m x 10m rolls, giving nominal areas of 5m² and 10m² respectively.
This is PAM Mesh 3, a studded HDPE wall membrane with a polypropylene mesh facing for approved finishing systems. Its nominal roll area is 20m².
Suitable mesh-faced membranes can receive compatible plaster or render finishes following the membrane manufacturer's instructions and finishing requirements.
P8 is a studded membrane marketed for basement and cellar waterproofing, including appropriate Type C cavity drain systems.
The listed P8 roll measures 2m x 20m, equivalent to 40m² before overlaps and cutting waste.
P20 is a cavity drain membrane range marketed for suitable basement flooring and below-ground water-management applications.
The supplied product list includes nominal 20m² and 40m² packages, plus a ten-roll pack containing 2m x 10m rolls.
Only where the membrane manufacturer approves the specific product for the intended floor loading and construction. Wall and floor membranes are not automatically interchangeable.
Some basement systems require pumped drainage, while others can use suitable gravity drainage. The requirement depends on site-specific water management and system design.
Many systems require compatible tapes and seals at overlaps, fixing points and other details. Follow the membrane manufacturer's approved jointing method.
Certain cavity drain membranes are specifically marketed for cellar and basement applications. A suitable below-ground waterproofing design is essential.
Some mesh-faced membranes can be used in suitably assessed contaminated or damp chimney breast applications. Check the source of moisture, salts and finishing requirements.
A membrane can isolate an internal finish from suitable moisture conditions but does not, by itself, remove an underlying source of water ingress.
The P2 Damp Proof Membrane 1m x 5m is listed at £36 and is the lowest-priced individual product in this selection.
Prices are for the product configuration listed. Some items are individual rolls, while the larger P20 product is a ten-roll pack.
Explore complete kits, jointing tapes, membrane fixings and basement drainage products from PAM Ties.
Choose mesh-faced wall membranes, P8 tanking membrane or P20 basement floor membrane from the PAM Ties range. Compare roll sizes, product applications and prices before ordering.
